Product Description

The most popular garage door opener in the World is here!. 2 Year Oniste Warranty, 5 Year Motor Warranty.

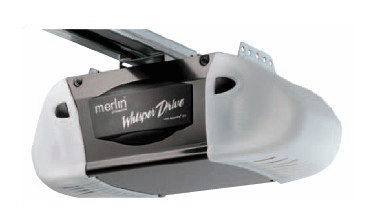

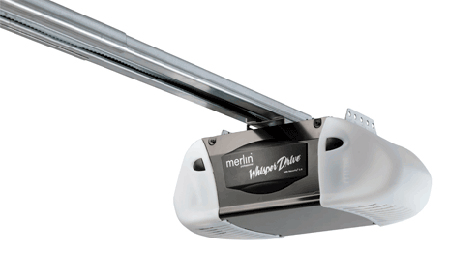

With its powerful AC motor and dual speed drive sprocket this opener has been engineered to open sectional doors quickly or tilt doors slowly. Capable of opening modern or older doors up to 15.5m2 effortlessly, it’s no wonder this is the world’s most popular opener.

The MT5580P comes with a two year general warranty and a five year warranty on the motor.

Door Types

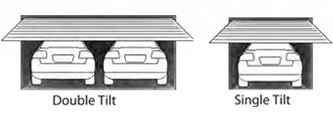

For sectional and tilt garage doors up to 15.5m2

Kit contents

• 1 x Powerhead
• 2 x Three channel key ring mini- transmitters C945
• Wireless wall button CM128

Key benefits

• Industrial strength chain system with one piece pole
• Accessories Included – this opener features two hand-held mini transmitters and a premium wall control.
• The MT5580P can be configured to run faster for sectional door openers or slower for tilt door openers.
• Allows easy installation of wired accessory devices directly to the opener’s power supply terminals.
• 40 Watt light illuminates your garage when the opener is activated
• Automatic Safety Reverse
• Automatic Force Sensing
• Manual Release
• The MT5580P comes with a two year general warranty and a five year warranty on the motor.

Door specifications

• Maximum lifting under spring tension–20 Kgs
• Suitable for steel and timber spring balanced doors
• Maximum lifting height (with extensions) 3.5m

Product specifications

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area 15.5m2
• Pulling force: 800N
• One piece pole and chain drive system
• Dual speed sprocket: sectional door speed or tilt door speed
• 433.92 MHz AM radio with Chamberlain Peak Detect™ rolling code technology
• Up to 8 memory registers
• Garage illumination: 240V/Max. 40 Watt E27
